Penetrating, anti-wear, extreme-pressure lubricant for power transmissions, NSF H1-approved for agro-food industries.
Last update: 2019/03/12 14:00

ADHESIVE PENETRATING LUBRICANT
FOOD GRADE CONTACT
LOW OR HIGH SPEED

OPEN DEVICES
EXTREME PRESSURE

ANTI-WEAR
RESISTANT TO THROW-OFF

HYDROFUGE

COMPLETELY RESISTANT TO WATER AND STEAM

iBiotec NEOLUBE® CT 20 AL



"Guaranteed without HFC greenhouse effect"







DESCRIPTION

Foaming lubricant with a very high viscosity index, having remarkable adherence and penetration properties.
Particularly recommended for the lubrication of all types of chains: roller, long pitch, API type roller-less, hollow rivet, leaf chains and, in general, all open mechanisms with fast or slow movement.
The formulation of this product gives it the property of penetrating to the working surfaces, difficult to access, and reduce their wear.
Perfectly resistant to water, salt water, hot water and steam while providing good anti-corrosion protection.
Product not subject to dripping or throw-off in use.
Extremely neutral and chemically inert. High stability.
Reduces operating noise of roller drive chains, facilitates their mounting.
Regularises the running of toothed chain transmissions, reducing vibration.

To obtain the best possible performance, a chain lubricant must be applied to cleaned and degreased surfaces. Use iBiotec NEUTRALENE V 200 in aerosol, which combines high cleaning and degreasing power along with optimum mechanical action.



Continuous use temperature:

-30°C+140°C


APPLICATIONS

Lubrication of transmission, handling and lifting chains Agricultural chains

Lubrication of open mechanisms, sprockets, gears, pinions and endless screws.

Mechanical components subjected to water spray.



                             Download the data sheet



TYPICAL PHYSICAL-CHEMICAL PROPERTIES

PHYSICAL PROPERTIES OF THE LUBRICATING OIL

PROPERTIES

STANDARD or METHOD

VALUE

UNITS

Appearance

visual

Flowing fluid

nm

Colour

Visual

amber

nm

Scent

Olfactory

light

nm

Density at 20°C

NF EN ISO 12.185

850

g/l

Nature of solid lubricants

-

Perflon

-

Nature of base oil

-

Polymer

-

Kinematic Viscosity

Base oil at 40°C

Base oil at 100°C

NF EN ISO 3,104



1,100

1,000



mm2/s-1

mm2/s-1

Sulphated ash

NF T 60.144

0.01

%

Acid index (ai)

EN 14,104

< 0.2

mg(KOH)/g

Closed-cup flash point

NF EN 22.719

190

°C

Self-combustion point

ASTM E 659

> 250

°C

Freezing point

ISO 3016

-35

°C

Impurities

> 25 µ

> 75 µ

> 125 µ

FTMS 791 3005



0

0

0



number/ml

number/ml

number/ml

PERFORMANCE PROPERTIES

PROPERTIES

STANDARD or METHOD

VALUE

UNITS

Utilisation temperature range

-

-30 +140

°C

Copper blade corrosion 24h 100°C

ISO 2160

1a

value

Loss by evaporation 22h at 121°C

ASTM D 972

<-0.5

% mass

SHELL 4-ball test

Impression diameter

Weld load index

 ISO 20.623 – ASTM D 2266





0.70

3500



mm

N

SRV test

ASTM D 5707

0.13

coefficient

Elastomer swelling test (dimensional change)

FTM 791

<+0.8

%

Suppression of operating noise

FAG MMG 11

  I

category

Maximum permitted speed

-

 0.5

m/s-1

Water wash-off resistance

at 80°C

ASTM 1264

< 1

%

Cold starting torque at -20°C

ASTM D 1478-63

10

N.cm

 *nm: not measured or cannot be measured



PRESENTATION

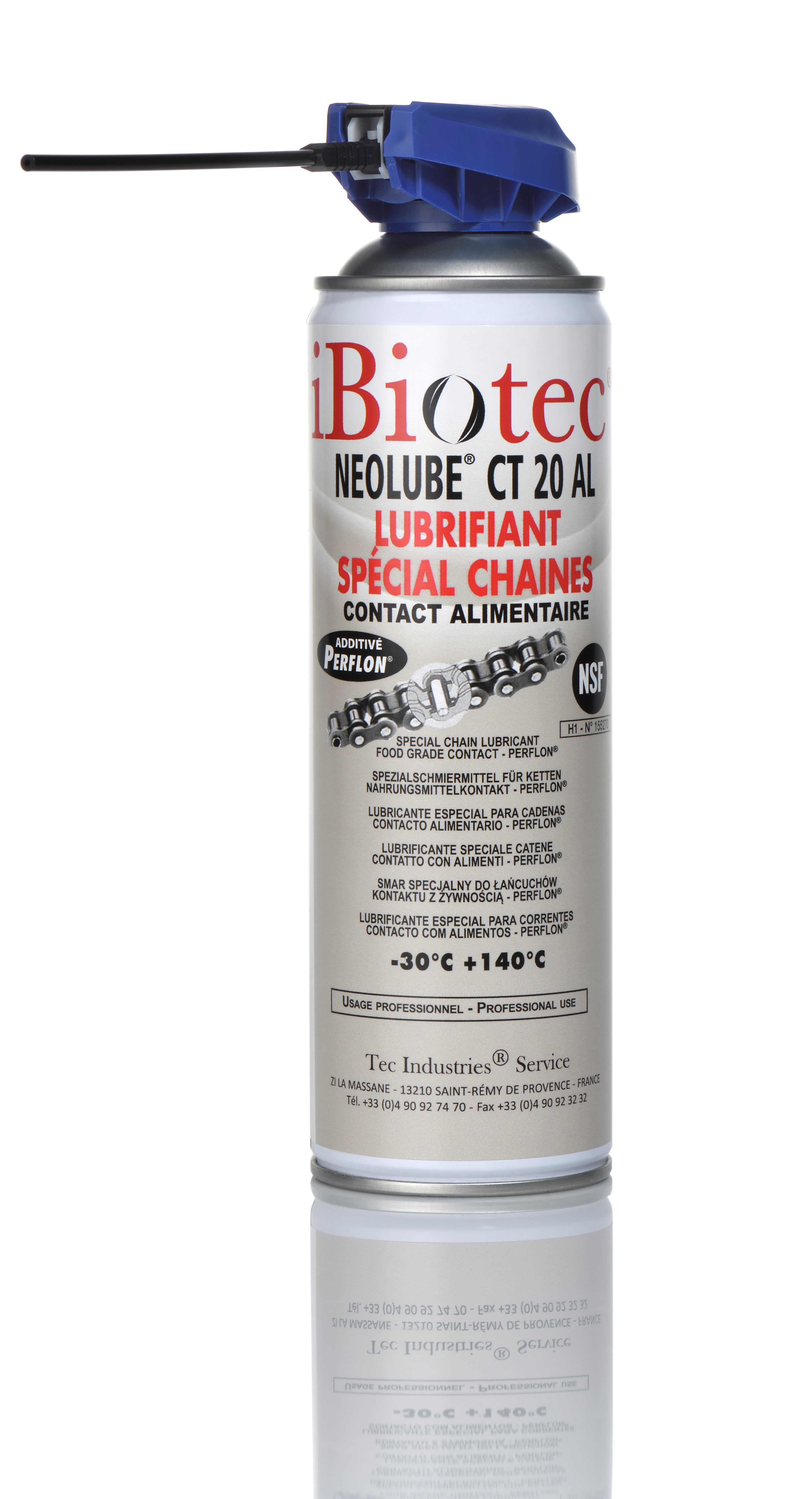

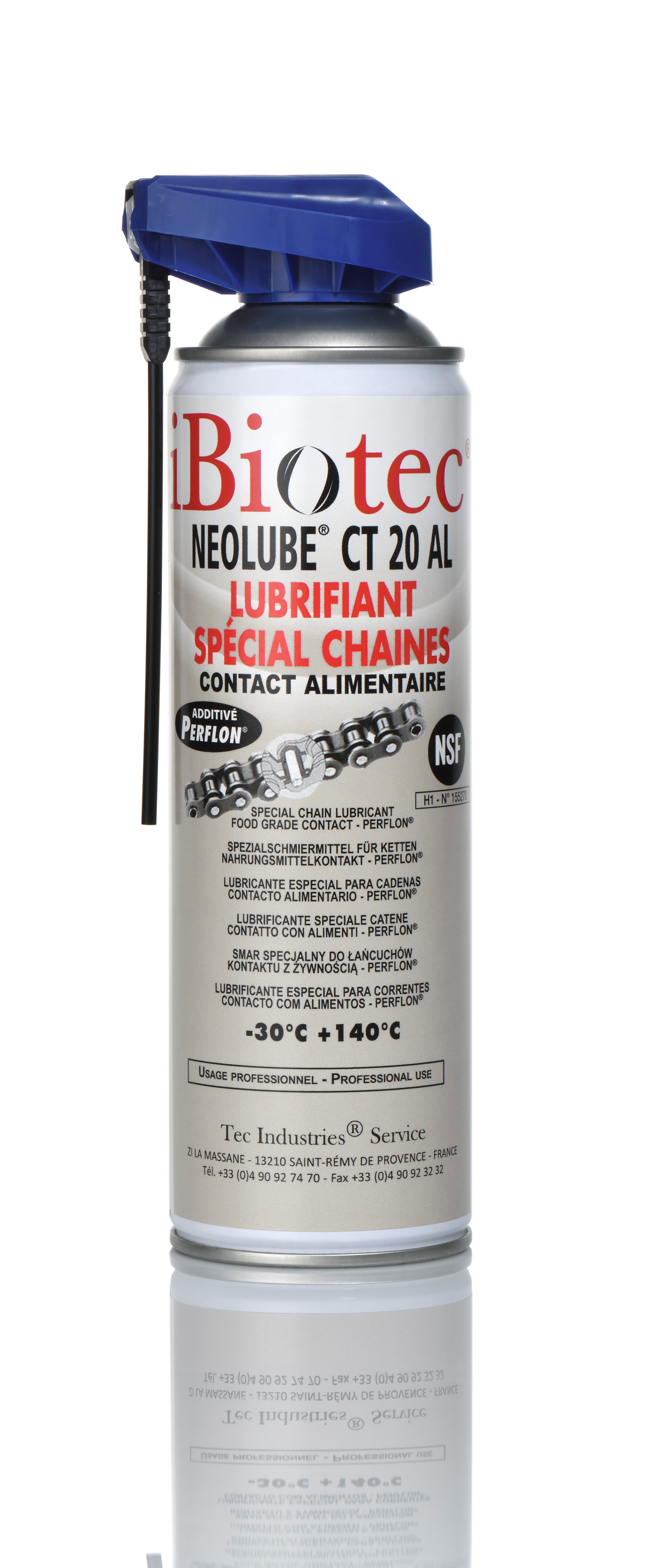

            Aerosol 650 ml

















Penetrating, anti-wear, extreme-pressure lubricant for power transmissions, NSF H1-approved for agro-food industries.











Looking for another product?

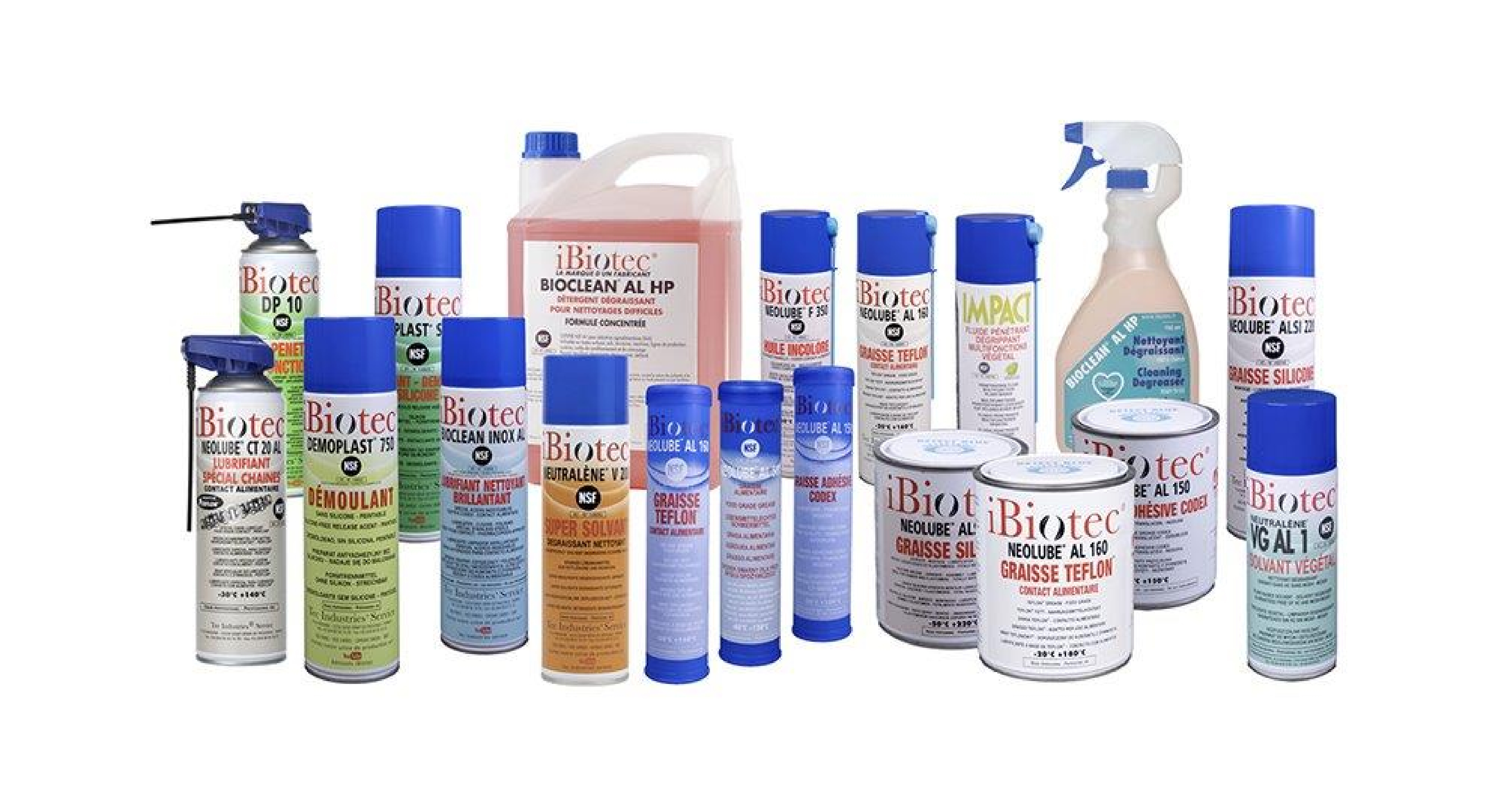

Discover our entire range by clicking on the photo
